กล้องวงจรปิด ทรงกระบอก ความคมชัด 4MP รุ่น IPC2124LR5-DUPF28(40)M-F : Uniview (UNV)
100%
฿0ปกติ฿1
การรับประกัน 3 ปี
บริการ ติดตั้งฟรี

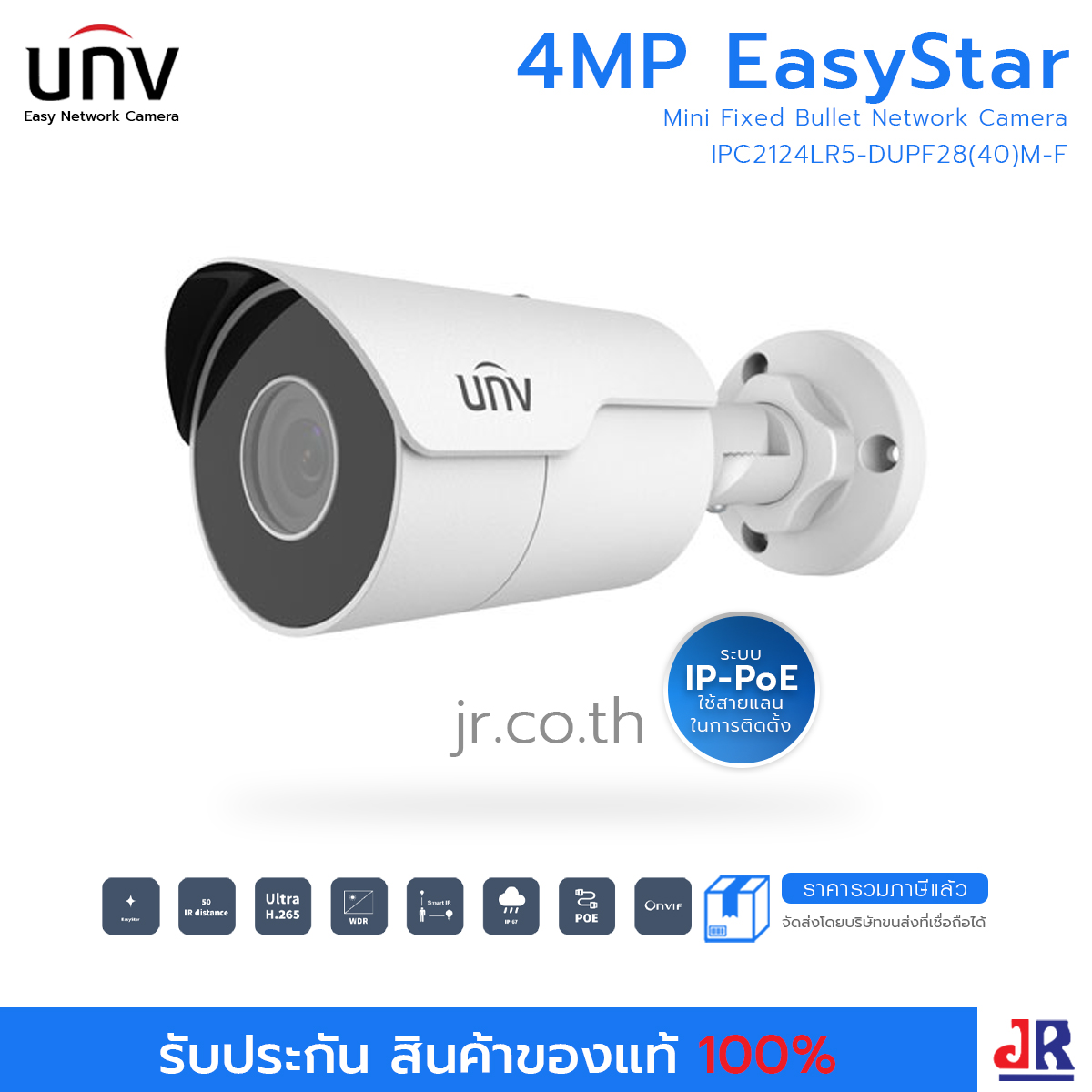

IPC2124LR5-DUPF28(40)M-F
4MP EasyStar Mini Fixed Bullet Network Camera
Optics
Day/night functionality
Smart IR, up to 50m (164ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
Wide voltage range of ±25%
IP67
รายละเอียดสินค้า
คุณลักษณะสินค้า
| IPC2124LR5-DUPF28M-F | IPC2124LR5-DUPF40M-F | |||||||
| Camera | ||||||||
| Sensor | 1/3", 4.0 megapixel, progressive scan, CMOS | |||||||
| Lens | [email protected] | [email protected] | ||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||
| 4.0 | 90 | 36 | 18 | 9 | ||||
| Angle Of View (H) | 105.3° | 79.7° | ||||||
| Angle Of View (V) | 57° | 41.6° | ||||||
| Angle Of View (O) | 136.9° | 98.0° | ||||||
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 50m (164ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120db | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main Profile, High Profile | |||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; Sub Stream: 720P (1280*720), Max 25fps | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 4 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Flip | Normal/Vertical/Horizontal/180° | |||||||
| Dewarping | Support | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||
| Interface | ||||||||
| Network | 10/100M Base-TX Ethernet | |||||||
| Certifications | ||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 6W | ||||||||
| Dimensions(L × W × H) | 191.3×72.6×70.9mm (7.5”×2.9”×2.8”) | |||||||
| Net Weight | 0.5kg (1.1lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 2KV | |||||||
| Ingress Protection | IP67 | |||||||
