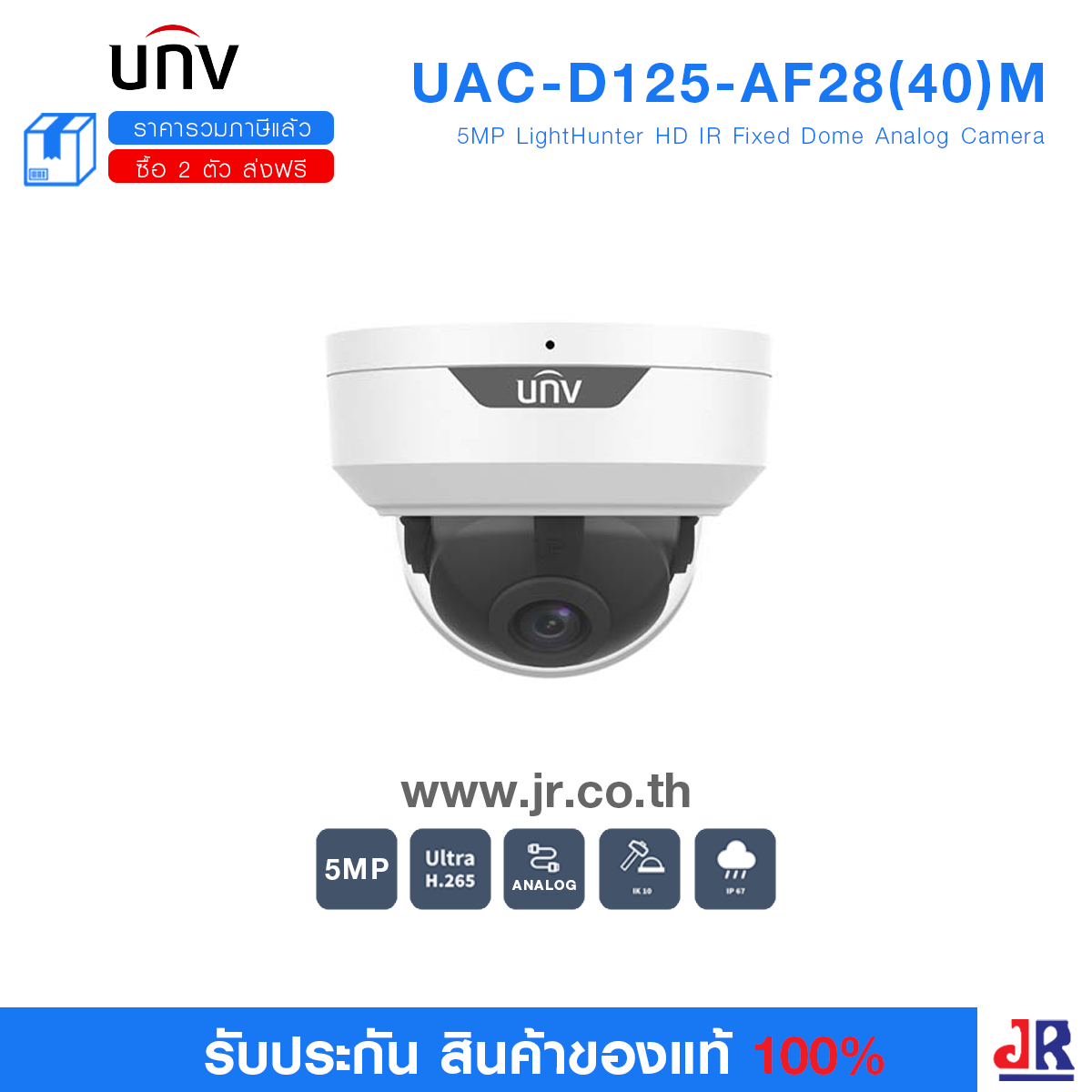

กล้องวงจรปิด ทรงโดม ความคมชัด 5MP รุ่น UAC-D125-AF28(40)M : Uniview (UNV)
UAC-D125-AF28(40)M
• High quality imaging with 5MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• Supports 180° horizontal/vertical flip
• OSD configuration menu, easy to operate
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Metal base and metal housing
• 3-Axis
รายละเอียดสินค้า
• High quality imaging with 5MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• Supports 180° horizontal/vertical flip
• OSD configuration menu, easy to operate
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Metal base and metal housing
• 3-Axis
คุณลักษณะสินค้า
| Model | UAC-D125-AF28M | UAC-D125-AF40M |
| Sensor | ||
| Pixel | 5MP | |
| Size | 1/2.7" | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) | |
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 109.1° V: 60.9° D: 126.7° | H: 91.3° V: 46.1° D: 109.6° |
| Illuminator | ||
| Illuminator | One IR illuminator | |
| Illumination distance | 30m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); [email protected]: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |
| Frame rate | TVI: 5MP@20fps (default), [email protected], 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Noise reduction | 2D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Smart IR | Support | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 5MP@20fps, [email protected], 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV for power and video output interfaces | |
| Ingress protection | IP67 | |
| IK rating | IK10 | |
| General | ||
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.3W | |
| Mount | Surface mount (default), optional tilted mounting bracket | |
| Dimensions | Φ109mm*82.5mm (diameter*height) | |
| Material | Metal | |
| Weight | 372g (0.82lb) | |
| Certification | CB, CE, FCC, UL | |
